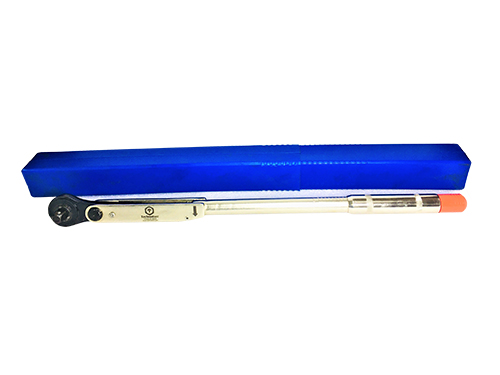

Manual Torque Wrench (MTW)
Key Features:
- Material: Light weight high strength alloy body reduces its weight to half of equivalent conventional Torque Wrenches.
- Compact Size: Compact with multiple extensions for use in restricted places. Light weight and compact packing for easy handling and transportation.
- Torque Indication: Short path gear actuation provides clear impulse and audible signal when reaching set torque values.
- Variable Extension: Adjustable extension bars for different lengths as per operator's requirement.
- Pin Locking: Pin Lock mechanism at Sq. Drive for positive safe locking.
- Graduation: Single Scale Graduation for clear reading (Standard in Nm, other scales available on request).
- Longer Range: 140 Nm to 3000 Nm covered in just four models.
- Accuracy: Better than ±3% with very high repeatability.
- Calibration: Traceable to National Standards.
- Ratcheting Action: Suitable Ratchet Adaptors available to convert to ratchet type.
- Packing: Standard sturdy cardboard box, metallic case available on request.
Available Types:
Open Jaw Fixed Head Type
Features an open jaw design with fixed head configuration for standard torque applications. Ideal for general purpose use with easy socket attachment.
Bi-Hex Ring Type
Bi-hexagonal ring design provides superior grip and torque transmission. Perfect for high-torque applications requiring precise force distribution.
Preset Torque Production Type
Factory preset torque models for specific applications requiring consistent, repeatable torque values without adjustment.
Ultra Light Weight Aluminum Alloy
Premium aluminum alloy construction reduces operator fatigue while maintaining strength. Perfect for extended use or overhead applications.
Model Specifications:
| SR. NO. | MODEL STANDARD | MODEL RATCHET | SQ.DR. | LB.FT. | NM | Kg.Mts. | OVERALL LENGTH (mm) | UNIT WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|
| 1 | MTW-100 A | MTW-100 R | 3/8" | 2-8 | 2.5-11 | 0.3-1.1 | 320/360 | 0.56 |
| 2 | MTW-300 A | MTW-300 R | 3/8" | 4-25 | 5-35 | 0.5-3.5 | 430/465 | 0.75 |
| 3 | MTW-600 A | MTW-600 R | 1/2" | 10-50 | 12-68 | 1.2-7 | 485/530 | 1.1 |
| 4 | MTW-1200 A | MTW-1200 R | 1/2" | 20-50 | 25-135 | 3-14 | 545/595 | 2 |
| 5 | MTW-2000 A | MTW-2000 R | 1/2" | 40-160 | 50-225 | 5-23 | 610/660 | 2.49 |
| 6 | MTW-3000 A | MTW-3000 R | 1/2" | 50-250 | 70-330 | 7-35 | 835/890 | 4 |
| 7 | MTW-5000 A | MTW-5000 R | 3/4" | 100-410 | 140-560 | 14-57 | 1120/1195 | 6.58 |
| 8 | MTW-7200 A | MTW-7200 R | 3/4" | 140-600 | 200-800 | 22-82 | 1300/1400 | 12.7 |
| 9 | MTW-8400 A | MTW-8400 R | 1" | 350-700 | 480-940 | 49-95 | 1400/1485 | 14 |
| 10 | MTW-14 | MTW-14/R | 3/4" | 100-400 | 135-540 | 14-56 | 1120/1195 | 6.5 |
| 11 | MTW-14 S | MTW-14 S/R | 3/4" | 100-500 | 135-750 | 14-78 | 1110/1195 | 7 |
| 12 | MTW-49 | MTW-49/R | 3/4" | 350-750 | 475-1050 | 49-105 | 1390/1480 | 15 |
| 13 | MTW-55 | MTW-55/R | 1" | 400-1000 | 540-1380 | 55-140 | 1305/1340 | 18 |
| 14 | MTW-105 | MTW-105/R | 1" | 750-1400 | 1000-1900 | 105-195 | 1305/1340 | 18 |
| 15 | MTW-170 | MTW-170/R | 1" | 1000-2000 | 1350-2700 | 135-275 | 1450/1530 | 20.6 |
