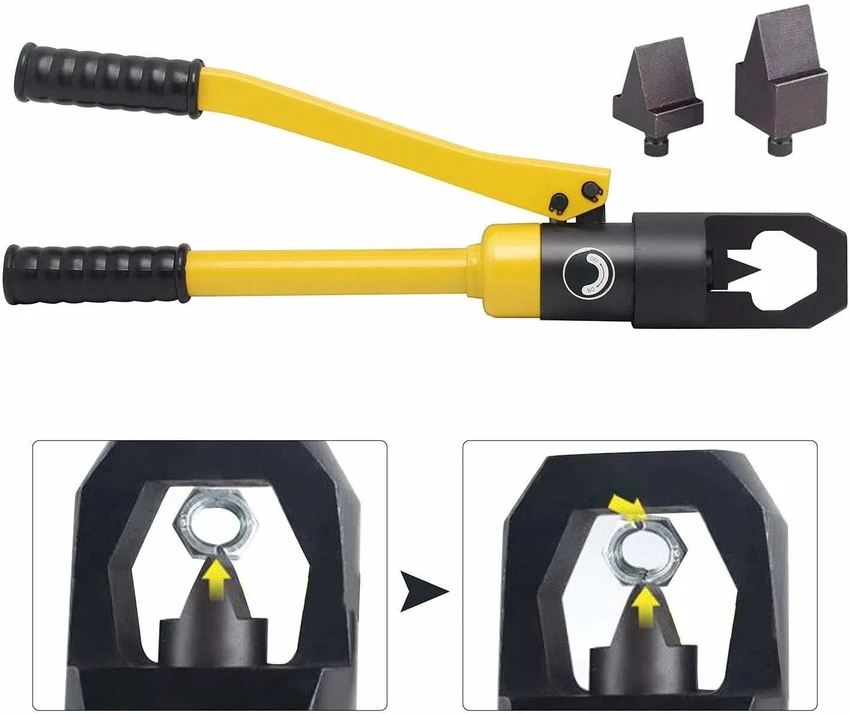

Hydraulic Nut Splitter (TNS)
Features and Benefits
- Compact and easy to use
- Single acting, spring return cylinder for fast blade retraction
- Easy to replace blade
- Angled head design for increased clearance
Technical Data:
| Model No | Nut Range (mm) | Oil Capacity (cm³) | Capacity (ton) | Bolt Range | Weight (kg) |
|---|---|---|---|---|---|
| TNS-1019 | (10-19) | 15 | 5 | M6-12 | 1 |
| TNS-1924 | 19-24 | 20 | 10 | M12-16 | 2 |
| TNS-2432 | 24-32 | 60 | 15 | M16-22 | 3 |
| TNS-3241 | 32-41 | 80 | 20 | M22-27 | 5 |
| TNS-4150 | 41-50 | 155 | 35 | M27-33 | 9 |
| TNS-5060 | 50-60 | 240 | 50 | M33-39 | 12 |
| TNS-6075 | 60-75 | 492 | 90 | M39-48 | 35 |
| TNS-7080 | 70-80 | 377 | 103 | M45-52 | 38 |
| TNS-7085 | 70-85 | 377 | 103 | M45-56 | 39 |
| TNS-7095 | 70-95 | 377 | 103 | M45-64 | 40 |
| TNS-70105 | 70-105 | 377 | 103 | M45-72 | 41 |
| TNS-110115 | 110-115 | 819 | 193 | M76-80 | 70 |
| TNS-110130 | 110-130 | 819 | 193 | M76-90 | 73 |
