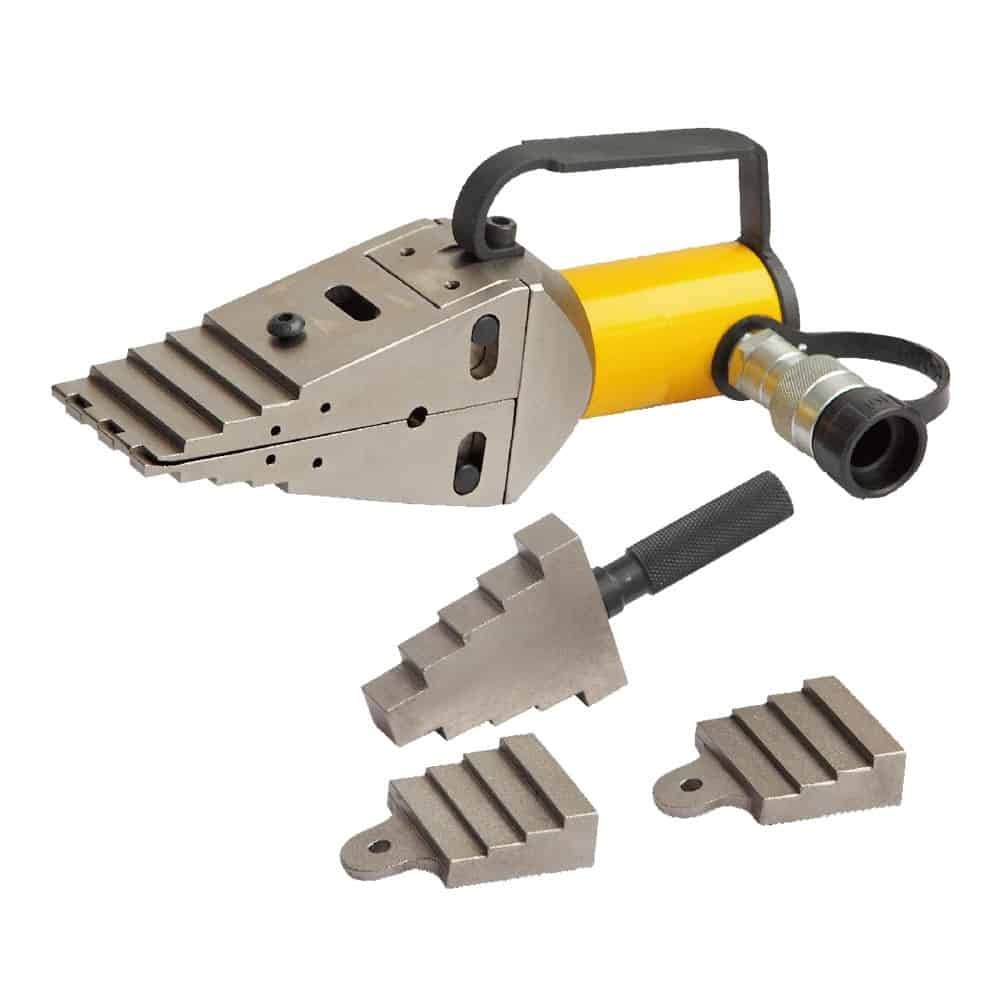

Hydraulic Flange Spreader (TFS)
Key Features:
Hydraulic Flange Spreaders are used for safely opening pipe flanges. Available in capacities of 5 tonnes and 10 tonnes, the versatility of both models enables the user to open flanges up to 92mm thick. Operated with a standard hydraulic hand pump and connecting hose, and supplied in a handy steel storage case.
Hydraulic Flange Spreaders can be operated individually, or as a pair when opening large diameter flanges. With Hydraulic Flange Spreaders it takes minutes to open the toughest flanges without the risks of sparks caused by hammer blows and chisels.
Model Specifications:
| Max Spreading Force (ton) | Model No | Max Spread (mm) | Tip Clearance (mm) | Spreader Type | Oil Cap (cm³) | Weight (kg) |
|---|---|---|---|---|---|---|
| 8 | TFS-8 | 81 | 6 | Mechanical | No | 7 |
| 14 | TFS-14 | 81 | 6 | Hydraulic | 78 | 9 |
