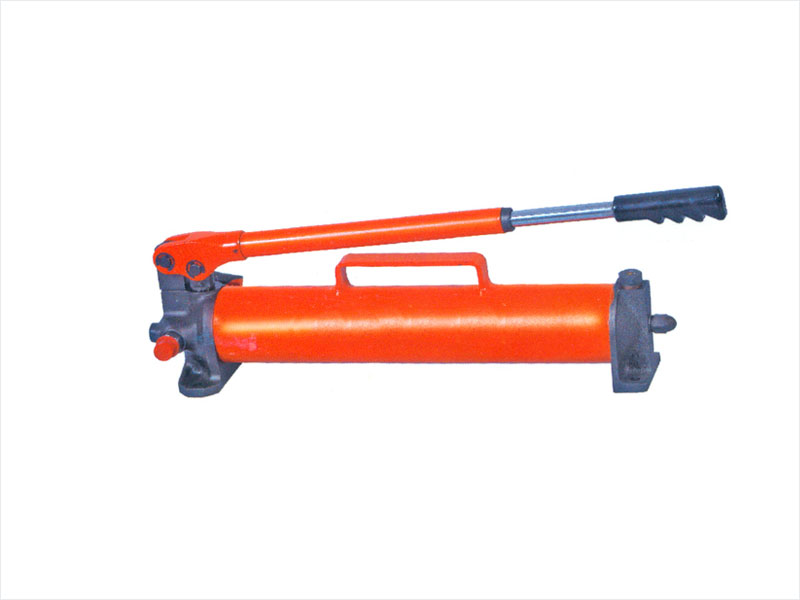

Single Stage Hand Pump
Features and Benefits
- Construction: Alloy steel
- Ground & plated plungers
- Built-in factory set safety relief valve
- Durable polyurethane plunger seal
- Collapsible handle for faster stroke at low pressure
- Fast approach to load
- Compatible to all reputed brand jacks
Technical Data:
| Pump Stage | Model | Pressure (Kg) | Flow/Stroke (cc) | Filling Capacity (Lit) | Usable Oil (Lit) | Handle Effort (Kg) | Dry Weight (Kg) | ||
|---|---|---|---|---|---|---|---|---|---|
| 1st Stage | 2nd Stage | 1st Stage | 2nd Stage | ||||||
| Single | THP-1.8 | - | 700 | - | 2.8 | 1.8 | 1 | 40 | 7.4 |
| Single | THP-2 | - | 700 | - | 2.8 | 2 | 1.5 | 40 | 9.5 |
| Single | THP-4 | - | 700 | - | 2.8 | 4 | 2.9 | 40 | 10.5 |
